TV-650

VERTICAL LATHE FOR WHEEL MANUFACTURING

This 4-axis vertical lathe with rotary table specially designed for the machining of cast, flow formed, and forged light alloy wheels up to 24" (610 mm) in diameter.
The machine requires very little maintenance and delivers high productivity.
See this machine in action
Technology
A machine designed for sustainability and easy installation

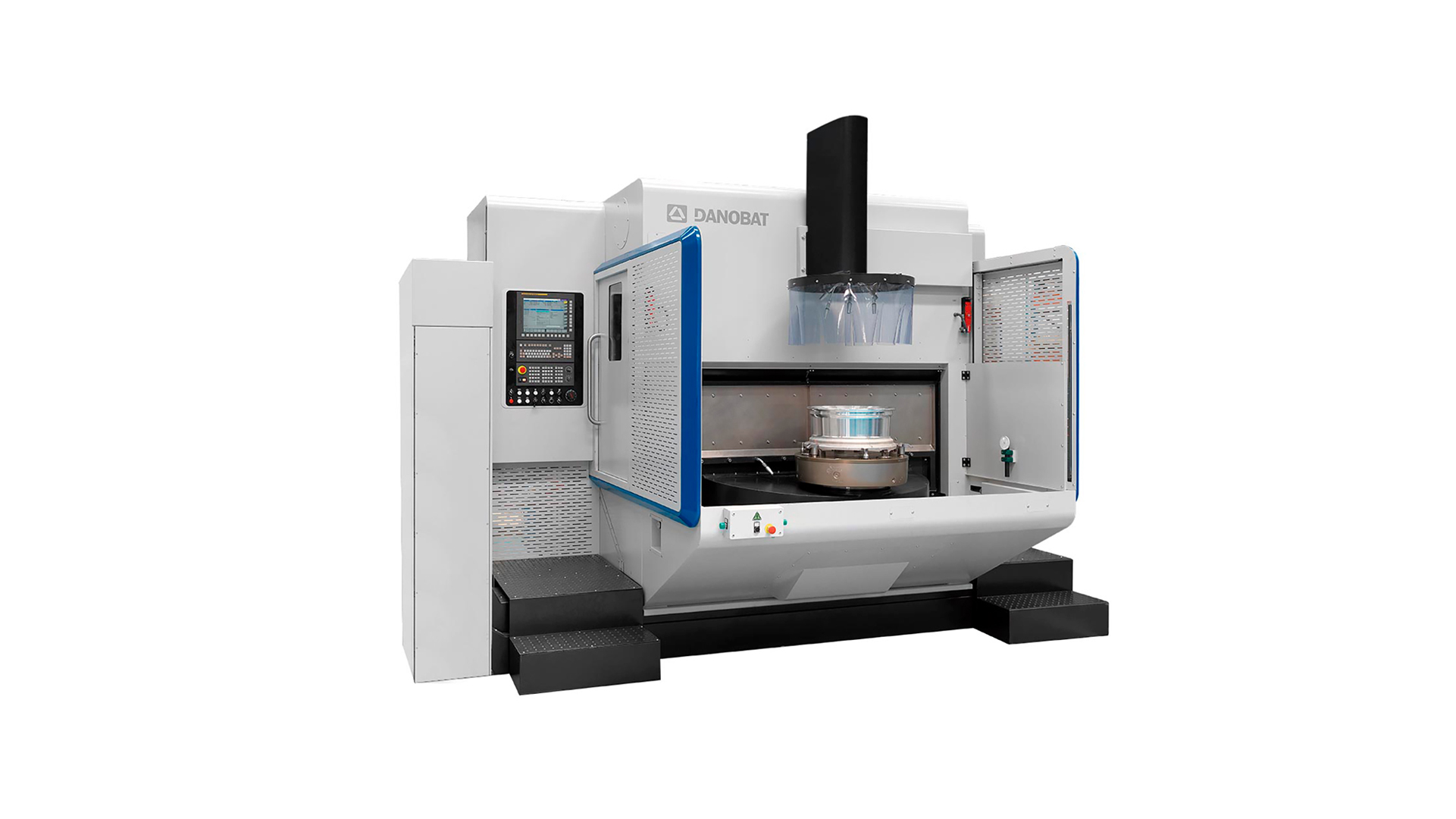

0 tv technology 0
High performance motor spindle

Direct-drive spindle with integrated motor, 124.7 hp (93 kW) and 3000 rpm:

  • High stock removal capacity
  • Fast acceleration and braking times (3 seconds)
  • Delivers excellent wheel surface finish
NC-controlled rotary table (programmable axis)
  • Fast (6 seconds) and accurate, backlash-free, table rotation
  • Extremely robust construction (maintenance free)
  • Possibility of changing the clamping chucks at any programmed point
X and Z slides

Best results in tightest tolerances, such as wheel central bore.

  • X slides are entirely supported over the machine bed. There is no suspended weight, eliminating any tilting moment
  • Lightest Z slides mounted over X slides
High quality cast iron for machine bed, headstock, and cross slides

Best results during machining:

  • Excellent vibration damping capacity
  • High compressive strength
Clamping chucks for flexible random production
  • Chuck clamps 3 different wheel sizes without any mechanical changeover of the lathe
  • Pneumatic monitoring system detects wheel clamped/not clamped status
Ergonomic large lateral sliding doors
  • Ergonomic access for changing the cutting tools or for maintenance
  • The vertical arrangement of the tool turrets simplifies the manual changing of the cutting tools
  • Doors with security window and security switches
Workpieces

Automotive wheel

Service
We offer services to keep your TV in the best condition
  • Customized maintenance plans based on your production needs: laser interferometry tests, measuring equipment calibration and much more
  • Remote machine diagnosis: Keep your machine connected and analyze the vibration threshold of your machine spindles and the condition of your ballscrews (circularity tests, backlash measurements, etc.)
  • Upgrade your software and HMI to improve the productivity of your production lines
