Incorporates tool holders and measuring devices. Accurate and reliable linear guideways.
Specialised system for measuring wheel diameter and wheel profile geometry. Compact design integrated in a single measuring head. Retractable to protect against chips during machining.

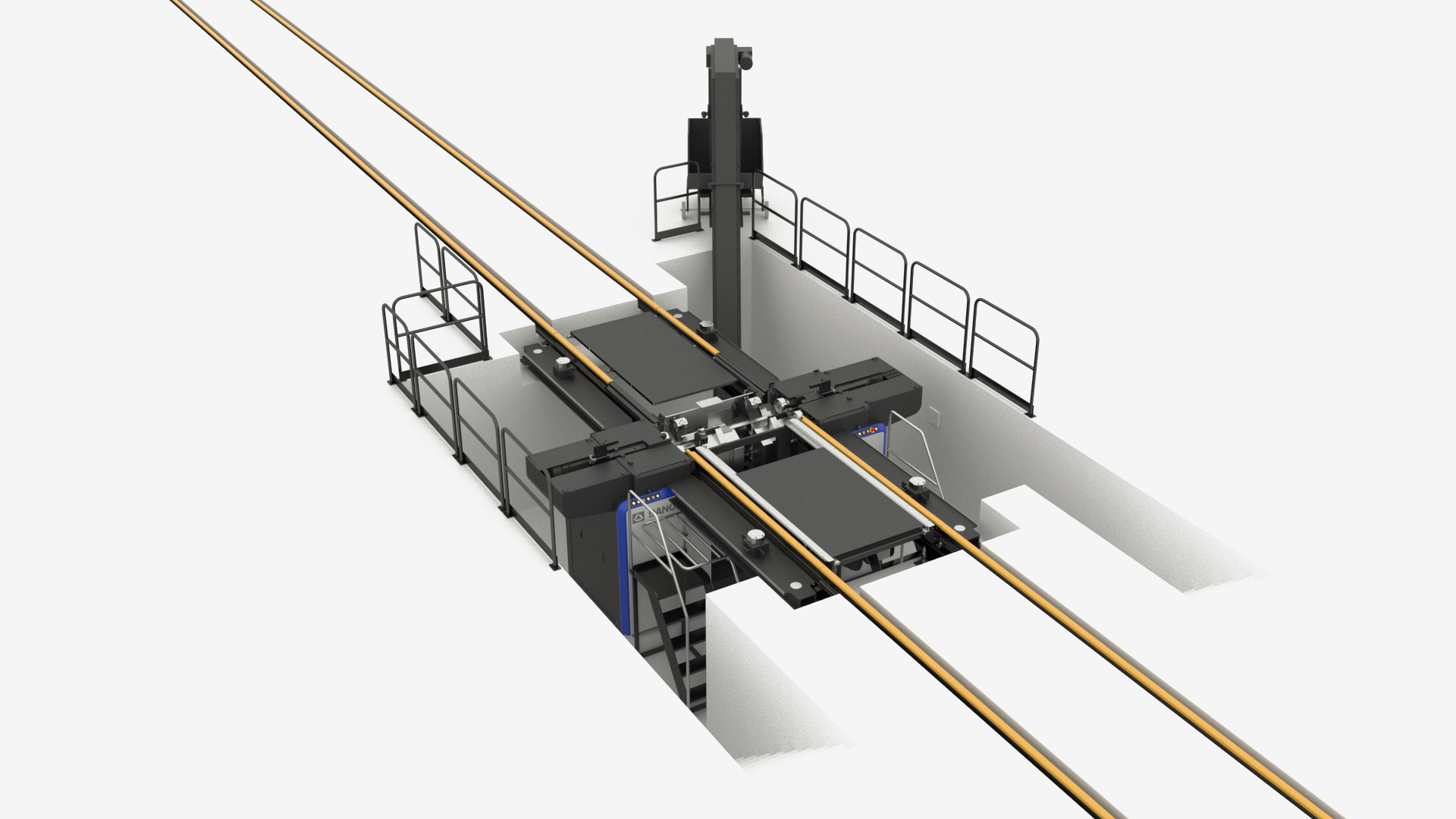

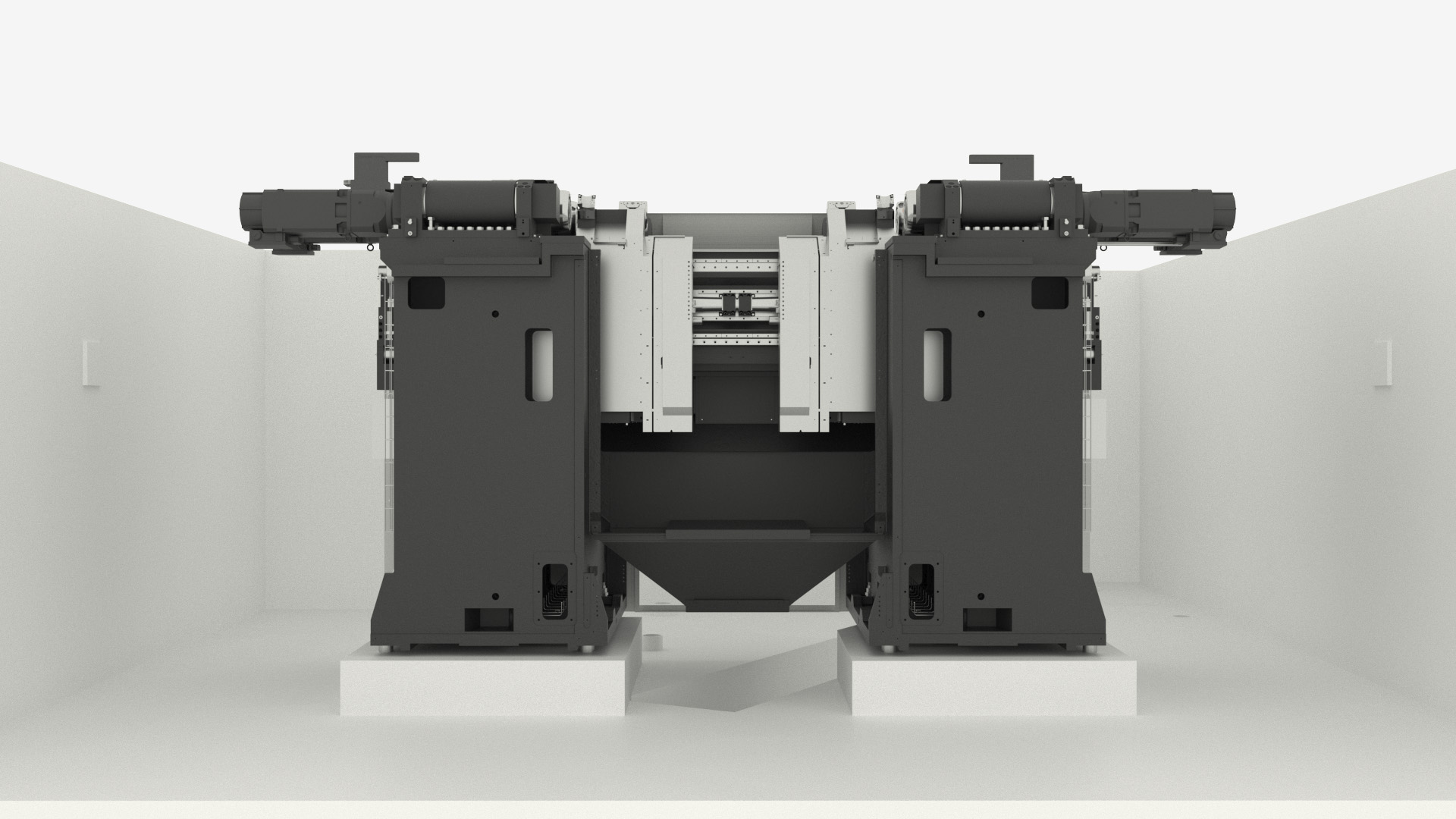

Optimised pit design enables fast machine installation.
Maximised accessibility and comfortable ergonomics for the operator.
Minimised required changes to your facility.
Add an ultrasonic inspection probe (UT) with a simple, manual tool change. Add safety and reliability to your turning processes.
| DLR/DLR (tandem) | DHD/DHD (tandem) | ||
|---|---|---|---|
| Track gauge | mm | 1000/1676 | 1000/1676 |
| Min. / max. wheel diameter | mm | 375/1400 | 375/1400 |
| Profile width | mm | 75/150 | 75/150 |
| Max. axle load | kg | 18000 | 30000 |
| Main drive power | kW | 4 x 9 | 4 x 15 |
| Chip section | mm2 | 6 | 10 |
| Machine weight | kg | 18000 | 18000 |
| Wheel Ø difference (wheelset) | mm | < 0,1 | < 0,1 |
| Wheel Ø difference (bogie) | mm | < 0,3 | < 0,3 |
| Radial runout | mm | < 0,1 | < 0,1 |
| Lateral runout | mm | < 0,2 | < 0,2 |
| Wheel profile geometry | mm | < 0,2 | < 0,2 |
| DLR/DLR (tandem) | DHD/DHD (tandem) | ||
|---|---|---|---|
| Track gauge | in | 40/60 | 40/60 |
| Min. / max. wheel diameter | in | 14.76/55.11 | 14.76/55.11 |
| Profile width | in | 3/5.9 | 3/5.9 |
| Max. axle load | Short tons | 19.84 | 33.1 |
| Main drive power | hp | 4 x 12.07 | 4 x 20 |
| Chip section | in2 | 0.0093 | 0.015 |
| Machine weight | lb | 39700 | 39700 |
| Wheel Ø difference (wheelset) | in | < 0.0039 | < 0.0039 |
| Wheel Ø difference (bogie) | in | < 0.0118 | < 0.0118 |
| Radial runout | in | < 0.0039 | < 0.0039 |
| Lateral runout | in | < 0.0079 | < 0.0079 |
| Wheel profile geometry | in | < 0.0079 | < 0.0079 |
