MASS PRODUCTION GRINDING MACHINE

The PG is a machine for standardised parts in mass production.
Due to the tremendous stiffness of the machine structure, you can use bigger grinding wheels (up to Ø915 mm) to get higher efficiency.
See this machine in action
Contact an expert
Contact an expert
Highlights
For single workpiece mass-production

A machine dedicated to making a single part with the following dimensions:

1000 mm
500 kg
80 m/s
CBN
Ø440 mm
Ø915 mm
PG
Highlights

Wheels up to Ø915 mm to grind in one set-up

  • Max. wheel dimensions, straight and angular, single wheel: Ø760 x 350 mm or Ø915 x 200 mm
  • Max. wheel dimensions, B axis, multiple wheels: Ø760 x 200 mm
PG
Highlights

Although it’s a single part machine, it’s easy to retool the PG

We adapt your machine to your new process, adjusting all the required mechanics and software.

PG
Highlights

One of the most ergonomic grinding machines

  • Large protective window for excellent visibility of the working area
  • The distance between the operator and the workpiece axis is perfect for part (un)loading
  • The design enables a fast grinding wheel change
Technology
When we talk about high production, every detail matters
Machine structure

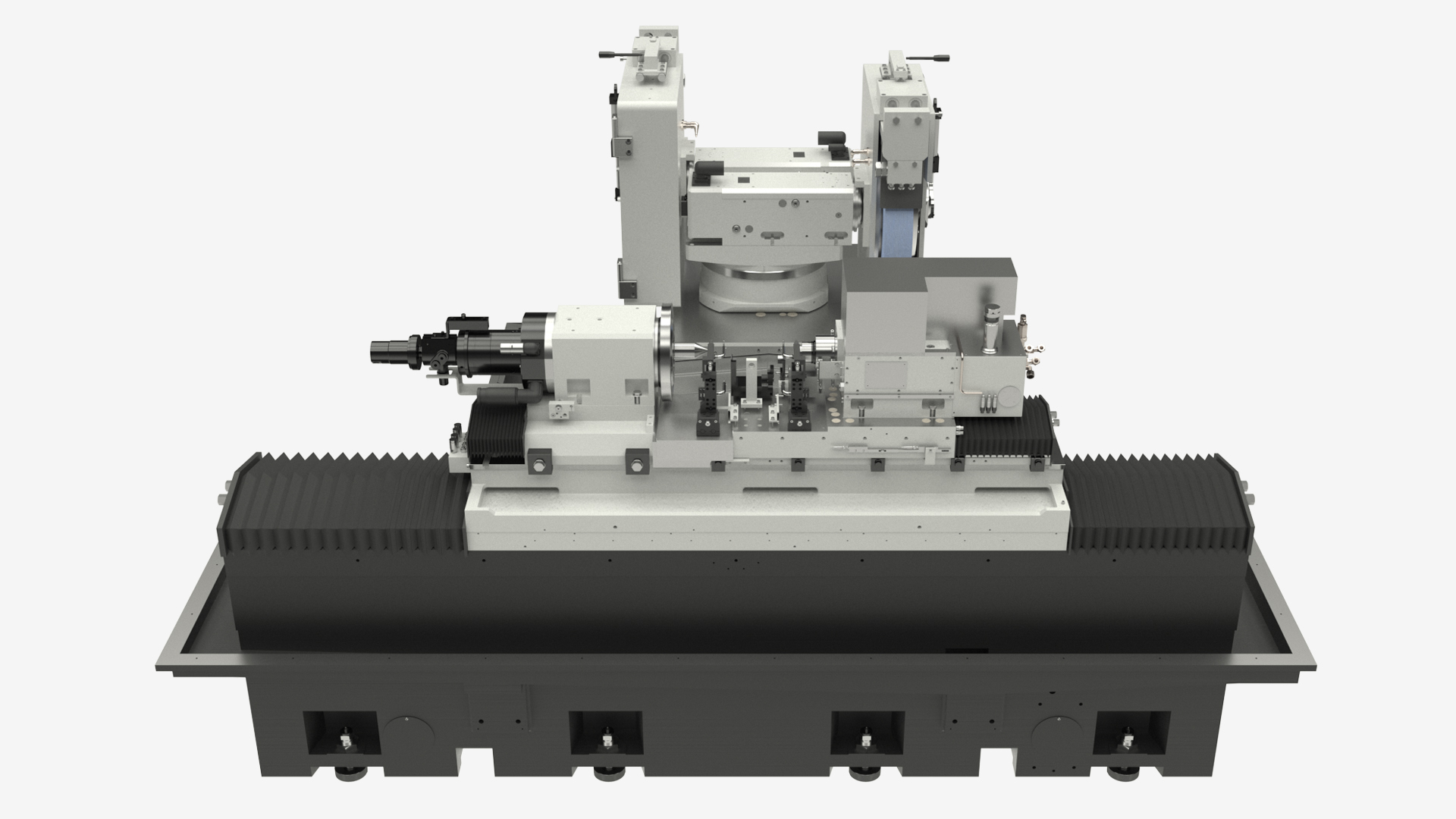

  • Manufactured and machined on a unique and rigid piece
  • Made of stress-relieved pearlitic cast iron
X and Z axes
  • Hydrostatic V and flat slideways
  • The slide is driven by a ballscrew with direct coupling to a CNC controlled servomotor
  • A high resolution absolute linear scale controls the positioning
Workhead & tailstocks
  • Rigid castings, made in modular designs with selected materials for stable temperature performance
  • Compressed air lifting systems for comfortable set-ups, and easy repositioning of the tailstock along the table
Grinding spindle heads
  • Mounted on proven ultra precision bearings (hydrostatic optionally) with lifetime grease lubrication
  • Driven by built-in electro-spindles
Swivelling B axis

Automatic swivelling, driven through a torque motor, and controlled by high resolution rotary encoder.

It can position in any angle, with a mechanical locking and pneumatic unlocking system.

Customisation
Customise your PG to be more competitive
Wheel head configurations

From straight (S) or angular (A) infeed types to a full swivelling wheel head B axis that can hold several configurations to provide the most flexible grinding solutions.

  • Fixed dresser
  • Dressing disc spindle
  • Dresser at workhead
  • Roller dresser
  • Three jaw chucks
  • Customised chucks
  • Hydraulic jaw chucks
  • Manual and hydraulic tailstocks
  • Synchronous tailstocks
  • Taper adjustment
  • Touch probe
  • In-process measuring
  • Post-process measuring
  • Non-contact measuring
Automation
Do you want to reduce cost per part?

We can offer you a machine including (un)loading systems, feeding or storage systems, and auxiliary stations.

Find your automation system >
Automation
S FLEXMOTION

Robot inside the machine.



M FLEXMOTION

Robot integrated in a cell coupled to the machine.

L FLEXMOTION

Robot outside the machine.



M MOTION

Gantry integrated in the machine.



L MOTION

Gantry outside the machine.



M HYBRID

Combination of an integrated gantry and an external robot cell.

L HYBRID

Combination of an external gantry and an external robot cell.

Technical data
PG-600 PG-1000
Max. distance between centers mm 600 1000
Max. diameter to be ground mm 440 440
Max. weight between centers kg 500 500
Max. grinding wheel diameter mm Ø760 x 350 Ø910 x 200
Max. wheel peripheral speed m/s 80 120
PG-600 PG-1000
Max. distance between centers in 23.62 39.37
Max. diameter to be ground in 17 17
Max. weight between centers lb 1100 1100
Max. grinding wheel diameter in Ø30 x 13.8 Ø36 x 7.8
Max. wheel peripheral speed sfpm 15750 23620
Workpieces

Gearbox shafts

Axle shaft

EV motor shaft

EV reducer shaft
