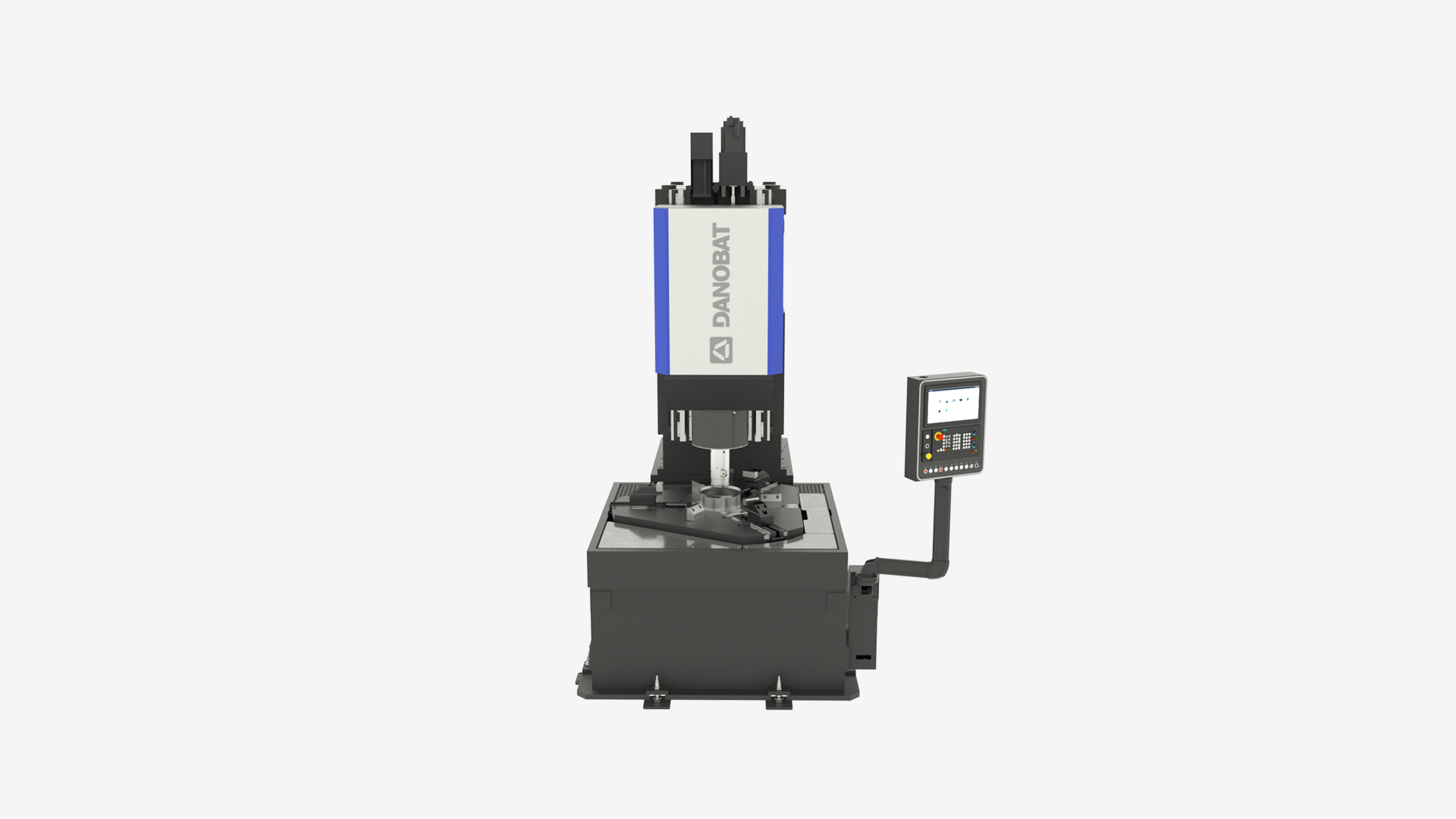

High precision boring bar with robust construction to perform wheel boring operations. Highly accurate, customisable and versatile.
A non-rotary chuck for the highest precision.
Located close to the machining area, giving the operator an optimal view.
The chips directed through the chucks central bore are evacuated from underneath the machine by a chip conveyor.
You can mount a wide range of insert geometries to obtain the best surface finish.
The machine allows chamfers or radii to be made on both the top and bottom face of the hub.
Need to machine an oil groove? No problem, the versatility of the tool used allows you to do so easily.
|Min. / max. wheel diameter||mm||610/1250|
|Min. / max. boring diameter||mm||190/250|
|Max. depth of cut diameter||mm||8|
|Roughness||µm||Ra 1,6 < 3,2|
|Min. / max. wheel diameter||in||24/49|
|Min. / max. boring diameter||in||6-10 1/4|
|Max. depth of cut diameter||in||0.315|
|Roughness||µin||Ra 63 < 125|
