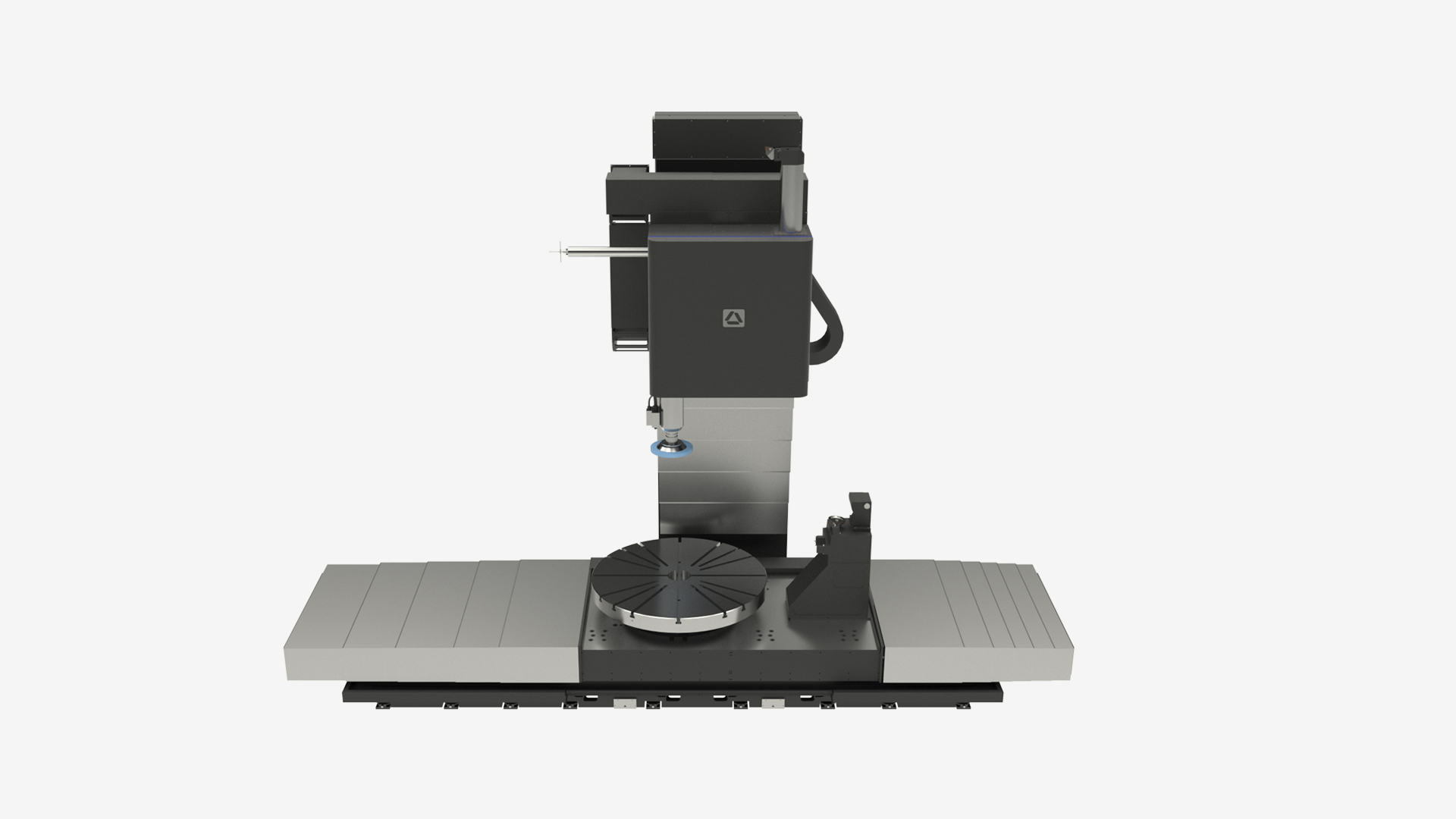

VERTICAL GRINDING MACHINE WITH MOVING TABLE

This hybrid machine is much more than a vertical grinder.

Not only does it satisfy the tightest tolerances, it also combines grinding, hard turning, milling, boring, and drilling in a single set-up.

See this machine in action

Highlights

How large and heavy is your workpiece?

The VG is the vertical machine for parts up to Ø76" (1950 mm) and 11023 lb (5000 kg).

If your parts are larger and heavier, you may be interested in the DVG >

76"

11023 lbs

Ø76"

Highlights

Multipurpose: All operations in a single machine

It performs multiple operations in a single set-up: grinding, hard turning, drilling, boring, milling and measurement.

It is designed to minimize part set-up and thus, avoid errors that are critical when you grind such valuable parts.

Highlights

Wide grinding wheels to obtain the shortest possible cycle time

This machine allows plunge grinding with wheel widths of up to 12" (300 mm).

Highlights

For parts requiring accurate profiles, like raceways

We know how demanding your part is.

For more than 40 years, we have been challenged with sub-micron machining projects for high precision workpieces, such as bearings.

This has enabled us to develop Danobat’s smooth guiding system for optimum axis interpolation, one of the many details making the VG special.

Highlights

What is the key for a probe to measure reliably?

Certifying a measurement is not just the job of a gauge. Accuracy depends on the ability to integrate mechanics, machining cycles, measurement algorithms and ultimately, the probe.

From the very first sketch, the VG is designed to integrate an automatic gauge.

Highlights

Interested in automation options to cut set-up times?

Automation is one of the best ways to reduce your overall production timelines without sacrificing precision or quality.

We integrate an automatic tool changer within the VG machine
We also offer an automatic part (un)loading device: A pallet system for setting up workpieces during the machining cycle

Leaders in grinding solutions for aero engine assemblies

Years of experience equals mountains of knowledge.

We have partnered with leading aero engine OEMs & worldwide MRO sites for over 35 years.

Thanks to this, we are number one in grinding solutions for all types of aero engine assemblies.

Technology

Latest technology for microscopic precision

Customization

Adjust the machine to the processes you need to run

Clamping systems

Face plates with grooves
Magnetic chucks
Hydraulic jaw chucks

Dressing solutions

Single diamond dresser
Rotary dresser
Multiple rotary dressers
Radius dressers

Tooling engineering

Different customized tooling solutions.

Technical data

		VG-600	VG-800	VG-1000	VG-1500	VG-1800
Maximum swing	mm	800	1000	1200	1650	1950
X stroke	mm	1900	2200	2200	2550	3100
Z stroke	mm	1000	1500	1500	1950	1950
Table load	kg	1000	2000	3000	5000	5000
Tools	-	4	4	4	4	4

		VG-600	VG-800	VG-1000	VG-1500	VG-1800
Maximum swing	in	31.50	39.37	47.24	64.96	76.77
X stroke	in	74.80	86.61	86.61	100.39	122.05
Z stroke	in	39.37	59.06	59.06	76.77	76.77
Table load	lb	2200	4400	6610	8820	8820
Tools	-	4	4	4	4	4

Workpieces

Find your workpiece

Gears

Inner & outer ring

Rotor & stub shafts

Honeycomb seals

Disks

Cases & stators

Machine tool spindle housing

Hydraulic breakers

Service

We offer service to keep your VG in the best condition

Yearly preventive maintenance, calibration, and customized plans
Retrofitting based on machine obsolescence and functionality upgrades (e.g. measuring systems, automation, etc.)
Retooling: Engineering and manufacturing of tooling & part fixtures
